IIS Limit Check Article

Member of  ScriptUtils.ASPForm | Changes | Purchase | Download

IIS Limit Check

IIS Limit Check is a simple application, which let's you check main IIS parameters important for upload files.

IIS Limits Check and setup

IIS Limit Setup is a simple hta application written in VBS for Internet Explorer. You can check and set base limits for POST requests in IIS6 and IIS7 - MaxRequestEntityAllowed, AspMaxRequestEntityAllowed, UploadReadAheadSize and MaxAllowedContentLength


IIS Limit Check

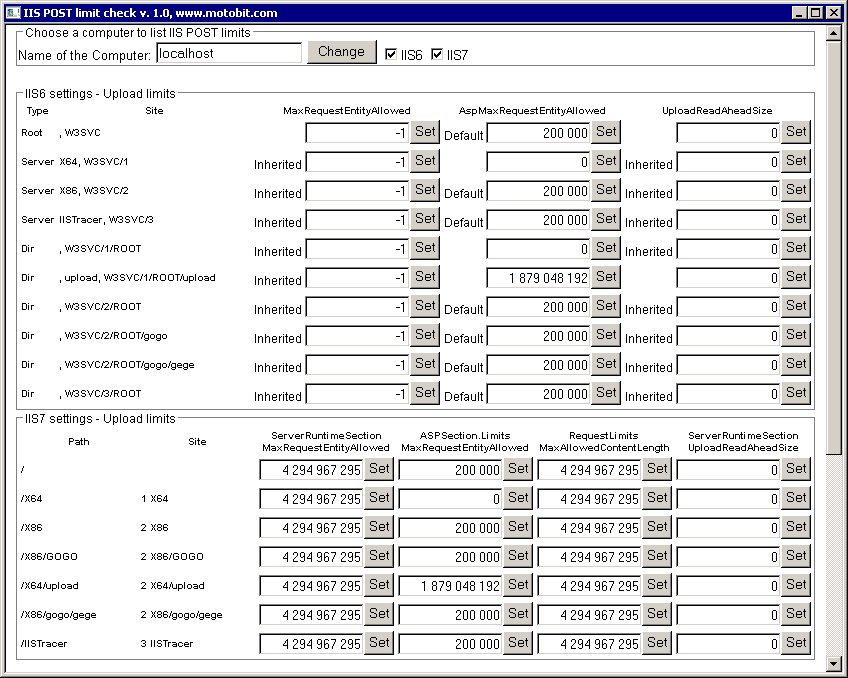

IIS Limits Check - monitor ans set IIS request and post limits


The AspMaxRequestEntityAllowed property specifies the maximum number of bytes allowed in the entity body of an ASP request. The default value for the AspMaxRequestEntityAllowed property is 204800 bytes (200kB).


The MaxRequestEntityAllowed property specifies the maximum number of bytes allowed in the entity body of a request. If a Content-Length header is present and specifies an amount of data greater than the value of MaxRequestEntityAllowed, IIS sends a 403 error response.


Specifies the maximum length of content in a request, in bytes. The default value is 30000000, which is approximately 28.6MB


The UploadReadAheadSize property establishes the number of bytes a Web server will read into a buffer and pass to an ISAPI extension. This occurs once per client request. The ISAPI extension receives any additional data directly from the client. The range is 0 to &HFFFFFFFF (4 GB).

IIS Limit Check - PAD file

IIS limit check PAD


Technical details and problems with UploadReadAheadSize IIS property for advanced users. Detailed explanation of communication between client browser and IIS server with several configuration values.

Other links for IIS Limit Check article

ScriptUtils.ASPForm.Upload - Files and forms with large/huge size.

Brief overview of work with very large files. ASPForm configuration and IIS setting for huge uploads or urlencoded forms with big fields.


Huge ASP upload is easy to use, hi-performance ASP file upload component with progress bar indicator. This component lets you upload multiple files with size up to 4GB to a disk or a database along with another form fields. Huge ASP file upload is a most featured upload component on a market with competitive price and a great performance . The software has also a free version of asp upload with progress, called Pure asp upload , written in plain VBS, without components (so you do not need to install anything on server). This installation package contains also ScriptUtilities library. Script Utilities lets you create hi-performance log files , works with binary data , you can download multiple files with zip/arj compression, work with INI files and much more with the ASP utility.
